BATTERIEHALTER 1028 | Battery Holders
Battery holder for mignon cell, 1 cell, PCB mounting, BATTERIEHALTER 1028
Order No.: 28A1032
EAN: 4099889658842
MPN:
BATTERIEHALTER 1028
Unit Price (€ / pc.)
2.5704 € *
Available: 8 pcs.
Leadtime: 2 Weeks **
Total Price:
2.57 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5704 €
10 pcs.
2.2729 €
100 pcs.
1.9873 €
250 pcs.
1.9159 €
1000 pcs.
1.7850 €
*incl. VAT plus shipping costs
**Subject to prior sale

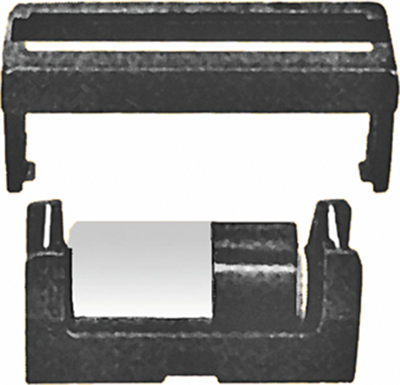

Battery holders, type KE 10.
For battery sizes AA (Mignon, approx. 15 x 51 mm), 1/2 AA (half Mignon cell), or 2/3 A (approx. 18 x 28 mm). With solder pin contacts for PCB mounting. A holder cover (snap-in) is available on separate order; Insulator: PBT to UL 94 V-0, black. Contacts: Nickel on copper.

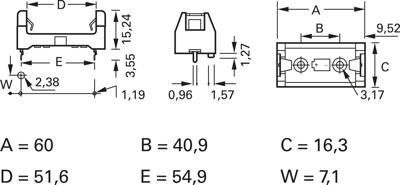

Technical attributes (type, battery version, dimensions A/B/D/E): 1028, AA, A 60/B 40.9/D 51.6/54.9 mm
Technical specifications
| Usage | mignon cell | |
| Number of cells | 1 | |
| Assembly | PCB mounting |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
