H 200 ROT TEILISOLIERT | Battery Clamps

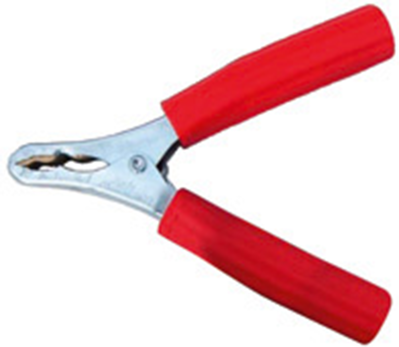

Battery charging plier 300 A, 160 mm, polarity symbol +, red, partial insulation
Order No.: 30F550
EAN: 4099891353186
MPN:
H 200 ROT TEILISOLIERT
Unit Price (€ / pc.)
6.1999 € *
Available: 21 pcs.

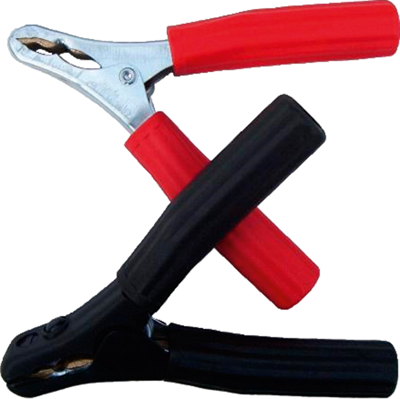

Battery charging pliers, partial or full insulation, type H200.
Made of sendzimir galvanized steel sheet, the current-carrying side is reinforced with a brass insert, fully insulated version with insulating caps made of Escorene Ultra EVA, cable connection up to 35 mm², suitable for screw connection with M6 ring lug, with strain relief, current rating 300 A; Length: 160 mm. Weight: 160 g.
Type: Polarity symbol +, red, partial insulation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Rated current | 300 A | |
| Version | Battery charging pliers | |
| Length | 160 mm | |
| Cable connection | 0.000035 m² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85359000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
