34 512 006 11 | Accessories for Enclosures
Threaded strip, steel, (L x W x H) 27.9 x 2 x 5 mm, 5 HP, 34 512 006 11
Order No.: 71H610
EAN: 4099889575286
MPN:
34 512 006 11
Unit Price (€ / pc.)
0.7259 € *
Available: 60 pcs.
Total Price:
7.26 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7259 €
50 pcs.
0.6307 €
*incl. VAT plus shipping costs
Subject to prior sale
Threaded strips, M 2.5 and M 3, type 34512.
Sliding strips, for example, for the groove of front and inner cross-profiles of subracks. The strips of the size 40 HP are slightly curved when delivered to prevent them from dropping out when they are mounted; Material: zinc-coated steel.
For M 3 threads, type 34512.

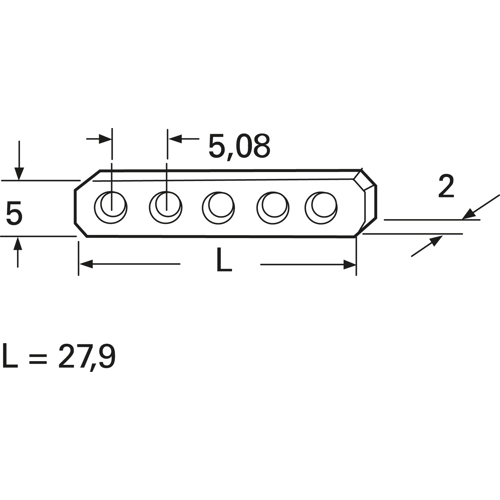

Technical attributes (type, HP, strip length): 00611, 5 HP, 27.9 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| cutting pitch differential | 5 HP | |
| Width | 2 mm | |
| Height | 5 mm | |
| Material | steel | |
| Product type | threaded strip | |
| Length | 27.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73181900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
