34 512 005 11 | Accessories for Enclosures

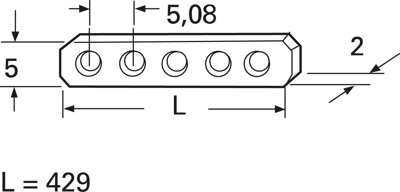

Threaded strip, steel, (L x W x H) 429 x 2 x 5 mm, 84 HP, 34 512 005 11
Order No.: 71H608
EAN: 4099889575279
MPN:
34 512 005 11
Unit Price (€ / pc.)
6.1880 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
123.76 € *
Price list
Quantity
Price per unit*
20 pcs.
6.1880 €
100 pcs.
5.4264 €
*incl. VAT plus shipping costs
Subject to prior sale
Threaded strips, M 2.5 and M 3, type 34512.
Sliding strips, for example, for the groove of front and inner cross-profiles of subracks. The strips of the size 40 HP are slightly curved when delivered to prevent them from dropping out when they are mounted; Material: zinc-coated steel.
For M 2.5 threads, type 34512.
Technical attributes (type, HP, strip length): 00511, 84 HP, 429 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| cutting pitch differential | 84 HP | |
| Height | 5 mm | |
| Width | 2 mm | |
| Length | 429 mm | |
| Material | steel | |
| Product type | threaded strip |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73181900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
