Coupled Inductors
59 items in 171 variations
*incl. VAT plus shipping costs
Item description
Total
Product type
Winding ratio
Inductance
Design
min. frequency
max. frequency
DC resistance
Length
Width
Height
min. operating temperature
max. operating temperature
Order No.:
59P9507
Manufacturer:
SCHURTER
Manufacturer SKU:
ITNF-0239-D202
Total Price: 4.70 € *
1 pcs.
4.7005 €
10 pcs.
4.2364 €
50 pcs.
3.8080 €
100 pcs.
3.4272 €
pulse transformer
1:1:1
1.6 mH
THT
0.4 Ω
22.3 mm
22.7 mm
13.6 mm
-25 °C
100 °C
Order No.:
59P9508
Manufacturer:
SCHURTER
Manufacturer SKU:
ITNF-0249-D101
Total Price: 2.67 € *
1 pcs.
2.6656 €
pulse transformer
1:1:1
1.4 mH
THT
0.5 Ω
17.8 mm
18.2 mm
13 mm
-25 °C
100 °C
Order No.:
59P9509
Manufacturer:
SCHURTER
Manufacturer SKU:
ITRA-0235-D103
Total Price: 3,312.96 € *
960 pcs.
3.4510 €
pulse transformer
1:1
2.8 mH
THT
1 Ω
13 mm
15.2 mm
10.6 mm
-25 °C
100 °C
Order No.:
59P9510
Manufacturer:
SCHURTER
Manufacturer SKU:
ITRA-0239-D502
Total Price: 1,046.25 € *
280 pcs.
3.7366 €
pulse transformer
1:1
2.2 mH
THT
0.4 Ω
22.3 mm
22.7 mm
13.6 mm
-25 °C
100 °C
Order No.:
59P9511
Manufacturer:
SCHURTER
Manufacturer SKU:
ITRA-0249-D104
Total Price: 2.67 € *
1 pcs.
2.6656 €
pulse transformer
1:1
3.5 mH
THT
0.7 Ω
17.8 mm
18.2 mm
13 mm
-25 °C
100 °C

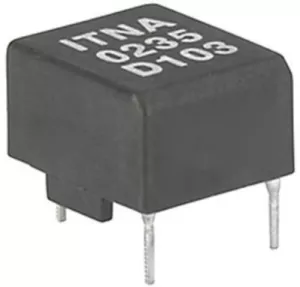

Order No.:
59P9512
Manufacturer:
SCHURTER
Manufacturer SKU:
ITRB-0239-D502
Total Price: 1,069.57 € *
280 pcs.
3.8199 €
pulse transformer
2:1
1.8 mH
THT
0.4 Ω
22.3 mm
22.7 mm
13.6 mm
-25 °C
100 °C

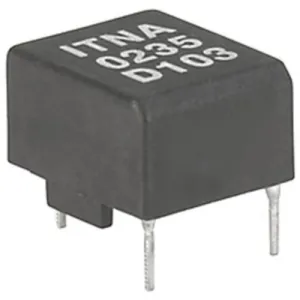

Order No.:
59P9513
Manufacturer:
SCHURTER
Manufacturer SKU:
ITRB-0249-D101
Total Price: 2.73 € *
1 pcs.
2.7251 €
pulse transformer
2:1
1.4 mH
THT
0.5 Ω
17.8 mm
18.2 mm
13 mm
-25 °C
100 °C
Order No.:
59P9514
Manufacturer:
SCHURTER
Manufacturer SKU:
ITRF-0235-D101
Total Price: 3,918.43 € *
960 pcs.
4.0817 €
pulse transformer
1:1:1
1.1 mH
THT
0.5 Ω
13 mm
15.2 mm
10.6 mm
-25 °C
100 °C
Order No.:
59P9515
Manufacturer:
SCHURTER
Manufacturer SKU:
ITRF-0239-D502
Total Price: 1,202.85 € *
280 pcs.
4.2959 €
pulse transformer
1:1:1
1.6 mH
THT
0.4 Ω
22.3 mm
22.7 mm
13.6 mm
-25 °C
100 °C
Order No.:
59P9516
Manufacturer:
SCHURTER
Manufacturer SKU:
ITRF-0249-D101
Total Price: 3.08 € *
1 pcs.
3.0821 €
pulse transformer
THT
17.8 mm
18.2 mm
13 mm
-25 °C
100 °C
Order No.:
66C266
Manufacturer:
Vacuumschmelze
Manufacturer SKU:
T60403-D4097-X055
Total Price: 12.80 € *
1 pcs.
12.8044 €
10 pcs.
11.2574 €
50 pcs.
10.4958 €
150 pcs.
10.0317 €
500 pcs.
9.5200 €
control transformer
1:1:1
6.5 mH
THT
1 kHz
280 mΩ
16 mm
14.8 mm
13.5 mm
-40 °C
85 °C

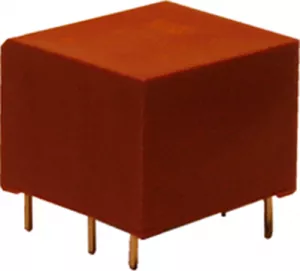

Order No.:
66C570
Manufacturer:
Vacuumschmelze
Manufacturer SKU:
T60403-D4721-X005
Total Price: 11,909.52 € *
1800 pcs.
6.6164 €
control transformer
2:1
3.4 mH
THT
10 kHz
17.8 mm
17 mm
13.5 mm

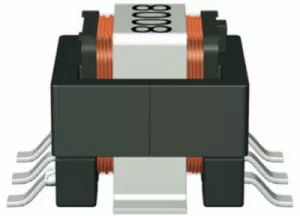

Order No.:
66C722
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B82801B0184A030
Total Price: 1,702.89 € *
900 pcs.
1.8921 €
current measuring transformer
1:30
180 µH
SMD
50 kHz
1 MHz
870 Ω
7.11 mm
8.13 mm
5.08 mm
-40 °C
125 °C
Order No.:
66C724
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B82801B0504A050
Total Price: 1,702.89 € *
900 pcs.
1.8921 €
current measuring transformer
1:50
500 µH
SMD
50 kHz
1 MHz
1.5 Ω
7.11 mm
8.13 mm
5.08 mm
-40 °C
125 °C
Order No.:
66C726
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B82801B0724A060
Total Price: 1,702.89 € *
900 pcs.
1.8921 €
current measuring transformer
1:60
720 µH
SMD
50 kHz
1 MHz
1.98 Ω
7.11 mm
8.13 mm
5.08 mm
-40 °C
125 °C
Order No.:
66C728
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B82801B0205A100
Total Price: 1,563.66 € *
900 pcs.
1.7374 €
current measuring transformer
1:100
2 mH
SMD
50 kHz
1 MHz
5.5 Ω
7.11 mm
8.13 mm
5.08 mm
-40 °C
125 °C
Order No.:
66C730
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B82801C0145A050
Total Price: 1,328.04 € *
600 pcs.
2.2134 €
current measuring transformer
1:50
1.4 mH
SMD
50 kHz
500 kHz
4 Ω
14.22 mm
13.46 mm
10 mm
-40 °C
125 °C

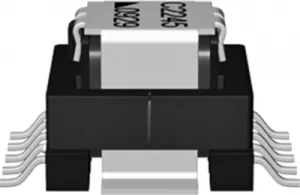

Order No.:
66C734
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B82801C1265A150
Total Price: 1,470.84 € *
600 pcs.
2.4514 €
current measuring transformer
1:150
12.6 mH
SMD
50 kHz
500 MHz
2.2 Ω
14.22 mm
13.46 mm
10 mm
-40 °C
125 °C

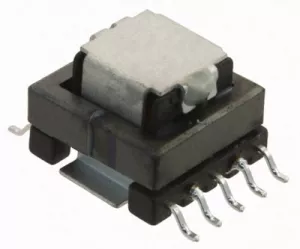

Order No.:
66C736
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B82801C2245A200
Total Price: 1,470.84 € *
600 pcs.
2.4514 €
2400 pcs.
2.3324 €
current measuring transformer
1:200
22.4 mH
SMD
50 kHz
500 kHz
2.9 Ω
14.22 mm
13.46 mm
10 mm
-40 °C
125 °C

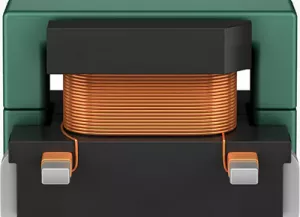

Order No.:
66C738
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B82801A1824A100
Total Price: 1,477.98 € *
600 pcs.
2.4633 €
current measuring transformer
820 µH
SMD
50 kHz
1 MHz
9 Ω
4.85 mm
4.5 mm
3.45 mm
-40 °C
125 °C
Coupled Inductors are used in low and high frequency technology. Signals, voltages and currents are converted by these passive components, and they therefore serve to amplify or reduce the respective input variable on the output side. Applications include measurement technology, where the Coupled Inductor acts as a signal transformer. Power transformers are used to match currents and voltages in switching power supplies and other power supply devices to specific quantities.
The manufacturing of Coupled Inductors requires precise winding techniques and high quality materials to achieve optimum performance.
Optimal service from Bürklin Elektronik
In Bürklin Elektronik's online store you will find a wide range of inductors and passive components. You can easily filter the high-quality Coupled Inductors from our well-known manufacturers according to turns, inductance, design, frequency and DC resistance - try it out! If you have any questions, please do not hesitate to contact our experts.
