Coupled Inductors
12 items in 53 variations
*incl. VAT plus shipping costs
Item description
Total
Product type
Winding ratio
Inductance
min. frequency
max. frequency
DC resistance
Length
Width
Height
min. operating temperature
max. operating temperature
Design
Order No.:
74D6214
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78417A2287A003
Total Price: 1,572.70 € *
320 pcs.
4.9147 €
current measuring transformer
1:125
11 mH
50 kHz
500 kHz
5.3 Ω
10.6 mm
12.2 mm
11 mm
-40 °C
150 °C
SMD
Order No.:
74D6216
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78419A2251A003
Total Price: 930.58 € *
200 pcs.
4.6529 €
current measuring transformer
1:100
7 mH
50 kHz
250 kHz
3.1 Ω
12.8 mm
13.6 mm
14.4 mm
-40 °C
150 °C
SMD
Order No.:
74D6217
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78419A2288A003
Total Price: 930.58 € *
200 pcs.
4.6529 €
current measuring transformer
1:50
1.7 mH
50 kHz
250 kHz
1.5 Ω
12.8 mm
13.6 mm
14.4 mm
-40 °C
150 °C
SMD
Order No.:
74D6218
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78419A2289A003
Total Price: 930.58 € *
200 pcs.
4.6529 €
current measuring transformer
1:70
3 mH
50 kHz
250 kHz
2.1 Ω
12.8 mm
13.6 mm
14.4 mm
-40 °C
150 °C
SMD
Order No.:
74D6219
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78419A2290A003
Total Price: 930.58 € *
200 pcs.
4.6529 €
current measuring transformer
1:125
11 mH
50 kHz
250 kHz
4 Ω
12.8 mm
13.6 mm
14.4 mm
-40 °C
150 °C
SMD
Order No.:
74D6220
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A1889A003
Total Price: 1,066.24 € *
400 pcs.
2.6656 €
LAN module
1:1
350 µH
100 kHz
100 MHz
13.64 mm
11.94 mm
6.22 mm
0 °C
70 °C
SMD
Order No.:
74D6221
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A7694A003
Total Price: 1,013.88 € *
400 pcs.
2.5347 €
LAN module
1:1
350 µH
100 kHz
100 MHz
25.4 mm
13.1 mm
6.35 mm
-40 °C
85 °C
SMD
Order No.:
74D6222
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8065A003
Total Price: 797.30 € *
500 pcs.
1.5946 €
LAN module
1:1
350 µH
100 kHz
100 MHz
12.7 mm
7.11 mm
5.6 mm
-40 °C
85 °C
SMD
Order No.:
74D6223
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8066A003
Total Price: 1,674.33 € *
300 pcs.
5.5811 €
LAN module
1:1
350 µH
100 kHz
27.81 mm
12.19 mm
7.24 mm
0 °C
70 °C
SMD
Order No.:
74D6226
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8135A003
Total Price: 1,147.16 € *
400 pcs.
2.8679 €
LAN module
1:1
350 µH
100 kHz
1 Ω
13.8 mm
15.2 mm
5.72 mm
-40 °C
85 °C
SMD
Order No.:
74D6228
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8246A003
Total Price: 1,303.05 € *
300 pcs.
4.3435 €
LAN module
1:1
350 µH
100 kHz
100 MHz
27.81 mm
12.19 mm
7.24 mm
0 °C
70 °C
SMD
Order No.:
74D6229
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8247A003
Total Price: 874.65 € *
500 pcs.
1.7493 €
LAN module
1:1
350 µH
100 kHz
100 MHz
1 Ω
12.7 mm
6.9 mm
5.6 mm
-40 °C
85 °C
SMD
Order No.:
74D6230
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8248A003
Total Price: 874.65 € *
500 pcs.
1.7493 €
LAN module
1:1
350 µH
100 kHz
100 MHz
12.7 mm
6.9 mm
5.6 mm
-40 °C
85 °C
SMD

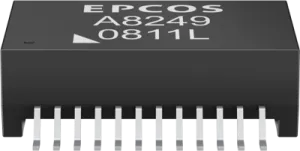

Order No.:
74D6231
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8249A003
Total Price: 1,003.77 € *
350 pcs.
2.8679 €
LAN module
1:1
350 µH
100 kHz
100 MHz
17.6 mm
12.1 mm
5.8 mm
0 °C
70 °C
SMD
Order No.:
74D6232
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8250A003
Total Price: 1,520.23 € *
350 pcs.
4.3435 €
LAN module
1:1
350 µH
100 kHz
100 MHz
17.6 mm
12.1 mm
5.8 mm
0 °C
70 °C
SMD
Order No.:
74D6233
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8251A003
Total Price: 1,003.77 € *
350 pcs.
2.8679 €
LAN module
1:1
350 µH
100 kHz
100 MHz
17.6 mm
12.1 mm
5.8 mm
-40 °C
85 °C
SMD
Order No.:
74D6234
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8252A003
Total Price: 1,520.23 € *
350 pcs.
4.3435 €
LAN module
1:1
350 µH
100 kHz
100 MHz
27.69 mm
7.29 mm
8.41 mm
-40 °C
85 °C
SMD
Order No.:
74D6235
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8253A003
Total Price: 1,003.77 € *
350 pcs.
2.8679 €
LAN module
1:1
350 µH
100 kHz
17.6 mm
12.1 mm
5.8 mm
0 °C
70 °C
SMD
Order No.:
74D6236
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B78476A8317A003
Total Price: 1,003.77 € *
350 pcs.
2.8679 €
LAN module
1:1
350 µH
100 kHz
100 MHz
17.6 mm
12.1 mm
5.8 mm
0 °C
70 °C
SMD
Order No.:
74D7861
Manufacturer:
TDK (EPCOS)
Manufacturer SKU:
B82801B0324A040
Total Price: 1,702.89 € *
900 pcs.
1.8921 €
current measuring transformer
1:40
320 µH
50 kHz
1 MHz
1.14 Ω
7.11 mm
8.13 mm
5.08 mm
-40 °C
125 °C
SMD
Coupled Inductors are used in low and high frequency technology. Signals, voltages and currents are converted by these passive components, and they therefore serve to amplify or reduce the respective input variable on the output side. Applications include measurement technology, where the Coupled Inductor acts as a signal transformer. Power transformers are used to match currents and voltages in switching power supplies and other power supply devices to specific quantities.
The manufacturing of Coupled Inductors requires precise winding techniques and high quality materials to achieve optimum performance.
Optimal service from Bürklin Elektronik
In Bürklin Elektronik's online store you will find a wide range of inductors and passive components. You can easily filter the high-quality Coupled Inductors from our well-known manufacturers according to turns, inductance, design, frequency and DC resistance - try it out! If you have any questions, please do not hesitate to contact our experts.
