LT CS | Weller

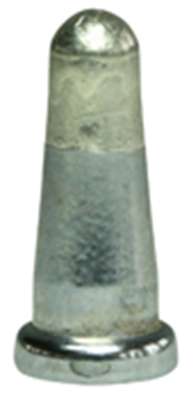

Name: Soldering tip, Round, Ø 4.6 mm, (T x L) 3.2 x 13 mm, 454 °C, LT CS
Brand: Weller
SKU: 09L6906
Price: 6.54 EUR
Availability: InStock

Soldering tip, Round, Ø 4.6 mm, (T x L) 3.2 x 13 mm, 454 °C, LT CS

Order No.: 09L6906

EAN: 4099891400811

MPN:

LT CS

T0054441199

Series: LT

Image may differ

Key Specification:

Version soldering tip

Peak type Round

Suitable for WP 80, WSP 80, WXP 80

diameter 4.6 mm

Thickness 3.2 mm

Show 56 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

6.5450 € *

Available: 9 pcs.

Leadtime: 1 Week **

Total Price:

6.55 € *

Price list

Quantity

Price per unit*

1 pcs.

6.5450 €

10 pcs.

5.8905 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Soldering tips for soldering tools FE 75/MPR 80/MLR 80/WP 80/WSP 80 and WSP 80 FE, type Weller LT.

Technical attributes (type, shape, width (A), thickness (B), length (L)): LT CS, round, A 3,2, B -, L 13,5 mm

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	BA
Customs tariff number	85159080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
