LT B HPB | Weller

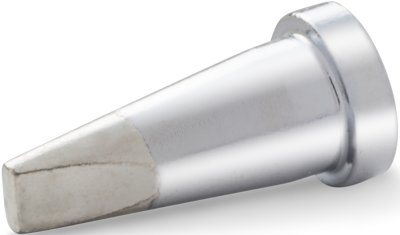

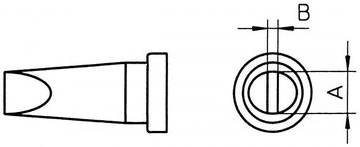

Name: Soldering tip, Chisel shaped, Ø 4.6 mm, (T x L x W) 0.8 x 13 x 2.4 mm, LT B HPB
Brand: Weller
SKU: 03L1700
Price: 9.04 EUR
Availability: InStock

Soldering tip, Chisel shaped, Ø 4.6 mm, (T x L x W) 0.8 x 13 x 2.4 mm, LT B HPB

Order No.: 03L1700

EAN: 4099891391065

MPN:

LT B HPB

T0054443299

Series: LT

Image may differ

Key Specification:

Version soldering tip

Peak type Chisel shaped

Suitable for WP 80, WSP 80, MPR 80, FE 75

diameter 4.6 mm

Thickness 0.8 mm

Show 55 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.0440 € *

Available: 17 pcs.

Leadtime: 1 Week **

Total Price:

9.04 € *

Price list

Quantity

Price per unit*

1 pcs.

9.0440 €

5 pcs.

8.5918 €

10 pcs.

8.1634 €

50 pcs.

7.7588 €

100 pcs.

7.3661 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Soldering tip, T0054443299, Weller

Soldering tip Chisel shape Ø 4,6 mm

Features

Attention: Not suitable for lead-free or other electronic solders
Soldering tip for high melting point lead solders for WP 80, WSP 80, MPR 80 und FE 75

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	JP
Customs tariff number	85159080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
