LT 4 | Weller

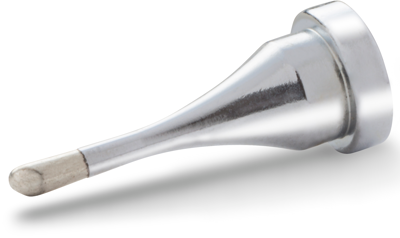

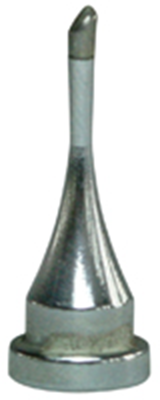

Name: Soldering tip, Beveled, Ø 4.6 mm, (T x L) 1.2 x 15 mm, 350 °C, LT 4
Brand: Weller
SKU: 09L6916
Price: 7.26 EUR
Availability: InStock

Soldering tip, Beveled, Ø 4.6 mm, (T x L) 1.2 x 15 mm, 350 °C, LT 4

Order No.: 09L6916

EAN: 4099891400903

MPN:

LT 4

T0054443999

Series: LT

Image may differ

Key Specification:

Version soldering tip

Peak type Beveled

Suitable for WP 80, WSP 80, WXP 80

diameter 4.6 mm

Thickness 1.2 mm

Show 56 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

7.2590 € *

Available: 10 pcs.

Leadtime: 2 Weeks **

Total Price:

7.26 € *

Price list

Quantity

Price per unit*

1 pcs.

7.2590 €

5 pcs.

6.9020 €

10 pcs.

6.5569 €

50 pcs.

6.2237 €

100 pcs.

5.9143 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Soldering tips for soldering tools FE 75/MPR 80/MLR 80/WP 80/WSP 80 and WSP 80 FE, type Weller LT.

Technical attributes (type, shape, width (A), thickness (B), length (L)): LT 4, round, 45° bevel, A 1,2, B -, L 15,0 mm

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85159080

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
