SFH618A-5 | Vishay

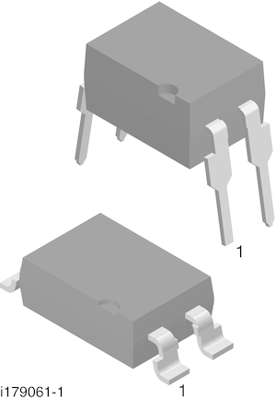

Optocoupler 250 to 500 % PDIP4 SFH618A-5
Active
Total price
(
0.7140 €
* / pcs.)
0.71 €
Currently not in stock, we will order for you
Please send price/quantity requests to info@buerklin.com
Description
Product by Vishay at Bürklin Elektronik
Optocoupler with photo transistor output, type SFH618A.
Low current input, with TRIOS (TRansparent IOn Shield); Package: PDIP4.
Technical attributes (type, CTR value): SFH618A–5, 250 to 500 %
Technical specifications
| Rise time | 0.0035 ms | |
| Number of channels | 1 | |
| Output current | 0.05 A | |
| Enclosure | DIP-4 | |
| Isolation voltage | 5300 V | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Fall time | 0.005 ms |
Logistics
| Country of origin | MY |
| Customs tariff number | 85414900 |
| Original Packaging | Bar with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
Order No.:
68S3543
Manufacturer:
Vishay
Manufacturer SKU
SFH618A-4
10 pcs.
0.5950 €
50 pcs.
0.5117 €
250 pcs.
0.4522 €
1000 pcs.
0.3927 €
2000 pcs.
0.3570 €
5.95 € *
Available: 388 pcs.
5300 V
1
0.05 A
THT
-55 °C
0.005 ms
100 °C
DIP-4
Order No.:
68S3544
Manufacturer:
Vishay
Manufacturer SKU
SFH618A-5
5 pcs.
0.7140 €
100 pcs.
0.2975 €
5300 V
1
0.05 A
THT
-55 °C
0.005 ms
100 °C
DIP-4
Order No.:
68S3542
Manufacturer:
Vishay
Manufacturer SKU
SFH618A-3
10 pcs.
0.6188 €
50 pcs.
0.5355 €
250 pcs.
0.4641 €
1000 pcs.
0.4165 €
2000 pcs.
0.3689 €
5300 V
1
0.05 A
THT
-55 °C
0.005 ms
100 °C
DIP-4
