MLS GG 200/2,5 BR | Hirschmann Test & Measurement

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, brown, PVC, 2.5 mm², CAT III

Order No.: 86F9580
EAN: 4099891947033
MPN:
MLS GG 200/2,5 BR
934 077-105
Series: MLS GG
Hirschmann Test & Measurement
default L
Image may differ
Unit Price (€ / pc.)
9.1868 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
9.19 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1868 €
10 pcs.
8.4966 €
25 pcs.
7.8183 €
100 pcs.
7.3542 €
250 pcs.
6.6640 €
*incl. VAT plus shipping costs
**Subject to prior sale

Measuring lead, MLS GG 200/2,5 BR, Hirschmann Test & Measurement

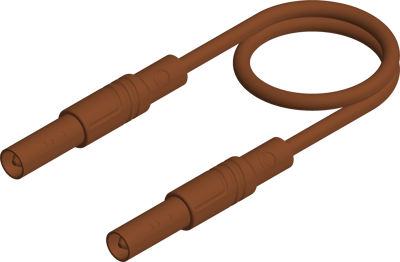

The MLS GG 200/2,5 BR is a safety measuring lead, at either end 4 mm diameter safety connector with straight outlet. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Color indicator for the recognition of damage to the insulation. In accordance to IEC 61010 standard.

Technical specifications
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, straight
Rated Voltage 1000 V
Rated current 32 A
Touch safe Yes
Colour brown
Cable length 2 m
contact surface nickel-plated
Cable cross-section 2.5 mm²
Material PVC
Rated category CAT III
Stackable No
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
