MLS GG 50/2,5 WS | Hirschmann Test & Measurement

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 0.5 m, white, PVC, 2.5 mm², CAT III

Order No.: 86F9610
EAN: 4099891947330
MPN:
MLS GG 50/2,5 WS
934 073-107
Series: MLS GG
Hirschmann Test & Measurement
default L
Image may differ
Unit Price (€ / pc.)
7.0924 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
7.09 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0924 €
10 pcs.
6.5688 €
25 pcs.
6.0333 €
100 pcs.
5.6763 €
250 pcs.
5.1408 €
*incl. VAT plus shipping costs
**Subject to prior sale

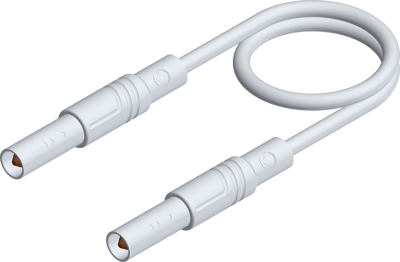

Measuring lead, MLS GG 50/2,5 WS, Hirschmann Test & Measurement

The MLS GG 50/2,5 WS is a safety measuring lead, at either end 4 mm diameter safety connector with straight outlet. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Color indicator for the recognition of damage to the insulation. In accordance to IEC 61010 standard.

Technical specifications
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, straight
Rated Voltage 1000 V
Rated current 32 A
Touch safe Yes
Colour white
Cable length 0.5 m
contact surface nickel-plated
Cable cross-section 2.5 mm²
Material PVC
Rated category CAT III
Stackable No
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
