ZMM68 | Diotec

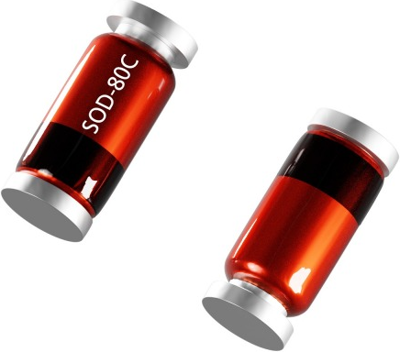

Silicon planar zener diode, 68 V, 500 mW, SOD-80C, ZMM68
Images may differ
Total price
( 0.0381 € * / pcs.)
3.81 €
Available: 1,500 pcs.
Leadtime
Quantity
Price per unit*
100 pcs.
0.0381 €
500 pcs.
0.0333 €
2500 pcs.
0.0274 €
10000 pcs.
0.0238 €
20000 pcs.
0.0214 €
*incl. VAT plus shipping costs
Description
Zener diodes, 500 mW, series ZMM.
Power losses: 500 mW. Package: Mini-MELF.
Technical attributes (type, Zener voltage, package): ZMM68, 500 mW, 68 V
Technical specifications
| Number of diodes | 1 | |
| Version | Silicon planar zener diode | |
| diameter | 1.45 mm | |
| Enclosure | SOD-80C | |
| Length | 3.5 mm | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -50 °C | |
| Assembly | SMD | |
| Junction temperature (max.) | 175 °C | |
| Junction temperature (min.) | -50 °C | |
| Power loss | 500 mW | |
| Zener voltage | 68 V |
Logistics
| Country of origin | SK |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
