Q- 3,072000M-HC49U-F-30-30-D-32 | Auris

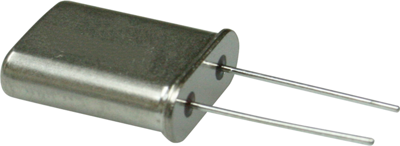

Crystal, 3.072 MHz, 32 pF, ±30 ppm, 150 Ω, THT

Order No.: 78D244
EAN: 4099879149558
MPN:
Q- 3,072000M-HC49U-F-30-30-D-32
Series: HC49U
Auris
default L
front L
Image may differ
Print
Key Specification:
Frequency 3.072 MHz
Frequency stability +/-30
Tolerance ±30 ppm
Load Capacity 32 pF
ESR (Equivalent Series Resistance) 150 Ω
Show 52 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.0829 € *
Available: 29 pcs.
Leadtime: 10 Weeks **
Total Price:
10.83 € *
Price list
Quantity
Price per unit*
10 pcs.
1.0829 €
50 pcs.
0.9520 €
250 pcs.
0.8211 €
1000 pcs.
0.7259 €
2500 pcs.
0.6545 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Standard quartz crystals, type Auris HC49U.

Frequency tolerance: ±30 ppm at +25 °C. Load capacitance: 32 pF. Operating temperatures: –20 to +70 °C. Insulation resistance: 500 Mohm. Aging: ±5.0 ppm/year.


Temperature tolerance ±30 ppm.


Type: 3.072000 MHz
Technical specifications

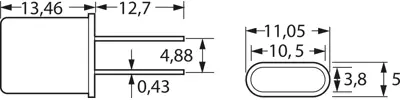

Width 5 mm
ESR (Equivalent Series Resistance) 150 Ω
Frequency 3.072 MHz
Frequency stability +/-30
Height 13.46 mm
Length 11.05 mm
Load Capacity 32 pF
max. operating temperature 70 °C
min. operating temperature -20 °C
Assembly THT
Tolerance ±30 ppm
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85416000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Load Capacity
Unit:
Frequency
Frequency stability
Width
Unit:
Length
Unit:
Tolerance
Height
Unit:
Assembly
min. operating temperature
max. operating temperature
1 item in 52 variations
