RC0805FR-0722KL | Yageo

Resistor, thick film, SMD 0805 (2012), 22 kΩ, 0.125 W, ±1 %, RC0805FR-0722KL

Order No.: 11E258
EAN: 4099879204806
MPN:
RC0805FR-0722KL
Series: RC
Yageo
default L
Image may differ
Print
Key Specification:
ohmic resistance 22 kΩ
Tolerance ±1 %
Power 0.125 W
Design SMD 0805 (2012)
Show 206 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.0114 € *
Available: 3,965 pcs.
Available in 4 Days: 75,000 pcs.
Leadtime: 1 Week **
Total Price:
3.43 € *
Price list
Quantity
Price per unit*
300 pcs.
0.0114 €
1500 pcs.
0.0076 €
5000 pcs.
0.0063 €
15000 pcs.
0.0050 €
30000 pcs.
0.0038 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD thick-film resistor, RC0805FR07-22K, Phycomp

Resistor, Thick film, SMD 0805, 22 kΩ, 0.125 W, ±1 %

Features

  • Halogen Free Epoxy
  • RoHS compliant
  • Reducing environmentally hazardous wastes
  • High component and equipment reliability
  • Saving of PCB space

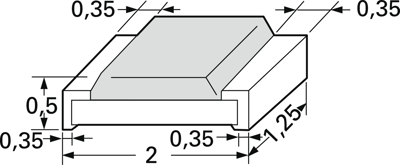

Technical specifications
ohmic resistance 22 kΩ
Design SMD 0805 (2012)
Width 1.2 mm
Height 0.5 mm
Length 2 mm
Power 0.125 W
max. operating temperature 155 °C
min. operating temperature -55 °C
Tolerance ±1 %
Technology thick film
Temperature coefficient ±100 ppm/K
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85332100
Original Packaging Reel with 5,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
