RC0603FR-072R7L | Yageo
Resistor, thick film, SMD 0603 (1608), 2.7 Ω, 0.1 W, ±1 %, RC0603FR-072R7L
As a private customer, you can buy this item as soon as we have it back in stock.
SMD thick-film resistors, size 0603, 0.1 W, tolerance 1.0 % or 5.0 %, type Yageo/Phycomp RC0603.
Rated load at +70 °C: 0.1 W. Temperature coefficient (TC): ±100 (up to 10R TC 200). Operating voltage: max. 50 V. Dielectric strength: 100 V. Operating temperatures: –55 to +155 °C. Sliding scale prices are valid exclusively for the quantity per resistance value ordered.

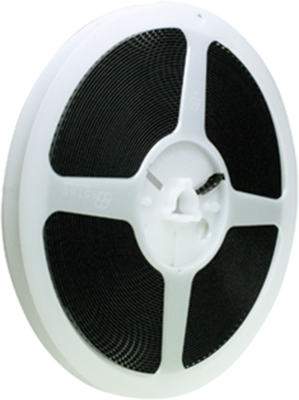

On original reels.
Reel of 5000 items
With 1.0 % tolerance, type RC0603.
Type: 2R7
Technical specifications
| ohmic resistance | 2.7 Ω | |
| Design | SMD 0603 (1608) | |
| Width | 0.8 mm | |
| Height | 0.45 mm | |
| Length | 1.6 mm | |
| Power | 0.1 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thick film | |
| Temperature coefficient | ±100 ppm/K |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 5,000 packages |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
