MKS2F024701C00KSSD | Wima
MKS film capacitor, 47 nF, ±10 %, 250 V (DC), PET, 5 mm, MKS2F024701C00KSSD
Active
Product by Wima at Bürklin Elektronik
Film capacitor, MKS2F024701C00KSSD, WIMA
The MKS2F024701C00KSSD is a metallized capacitor with thin layers of aluminium. The layers are vacuum-deposited on the insulating film as conducting electrodes. In the case of a breakdown, the short circuit current causes the thin metal coating to evaporate around the point of failure and an insulating area is formed. This product is used in the high frequency field. This includes resonant circuits, power supplies, deflection circuits, oscillator circuits and audio equipment.
Features
- High volume/capacitance ratio
- Self-healing
- Vacuum-deposited
- Tinned wire
- Solvent-resistant, flame-retardent plastic case with epoxy resin seal UL 94 V-0
Applications
- By-pass
- Blocking
- Coupling and decoupling
- Timing

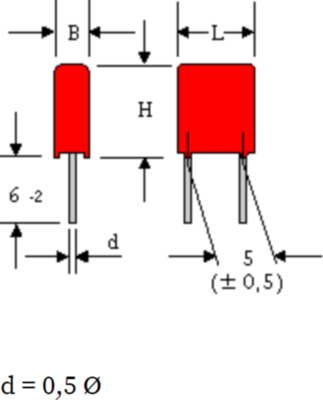

| Number of pins | 2 | |
| Design | radial | |
| Width | 3.5 mm | |
| Dielectric material | PET | |
| Height | 8.5 mm | |
| Capacity | 0.047 µF | |
| Length | 7.2 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 160 V | |
| Rated voltage (DC) | 250 V | |
| Grid | 5 mm | |
| Tolerance | ±10 % |
| Country of origin | DE |
| Customs tariff number | 85322500 |
| Original Packaging | Bulk with 5,000 pieces |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
