22815202 | Weco

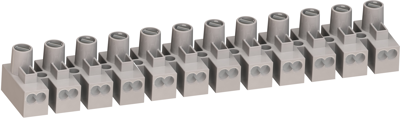

PCB terminal, 12 pole, pitch 10 mm, AWG 22-14, 24 A, screw/plug-in connection, gray, 22815202
Unit Price (€ / pc.)
4.7362 € *
Available: 46 pcs.
Leadtime: On Request **
Total Price:
4.74 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7362 €
10 pcs.
4.1412 €
100 pcs.
3.6414 €
250 pcs.
3.5105 €
*incl. VAT plus shipping costs
**Subject to prior sale
Terminals, type Weco 820/12.
With double push-in terminal on one side and rugged screw terminal on the other, 12-pole, can be separated, made of tough polyamide, self-extinguishing, plain-colored, with terminal shell made of tinned brass; Rated insulation voltage: 450 V. Rated current screw terminal/push-in terminal: 24/17.5 A. Terminating range push-in terminal: to 1.5 mm², solid wire. Terminating range screw terminals solid/fine-wire: up to 4.0/2.5 mm². Operating temperatures: –40 to +80 °C. Dimensions LxWxH: 117.5 x 19.2 x 16 mm. Certifications: VDE, UL, CSA etc.
Type: 820/12, terminal
Technical specifications
| Connection | screw/plug-in connection | |
| AWG cross-section | AWG 22-14 | |
| Width | 19.2 mm | |
| Colour | gray | |
| Height | 16 mm | |
| Cable cross-section | 1.5 mm² | |
| Rated voltage | 450 V | |
| Rated current | 24 A | |
| Pin number | 12 pole | |
| Grid | 10 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
