3-2176341-7 | TE Connectivity
Resistor, thick film, SMD 2012, 10 kΩ, 0.125 W, ±1 %, 3-2176341-7
Unit Price (€ / pc.)
0.0074 € *
Available: 0 pcs.
Available in 5 Days: 55,000 pcs.
Leadtime: 1 Week **
Total Price:
0.01 € *
Price list
Quantity
Price per unit*
15000 pcs.
0.0074 €
20000 pcs.
0.0054 €
*incl. VAT plus shipping costs
**Subject to prior sale

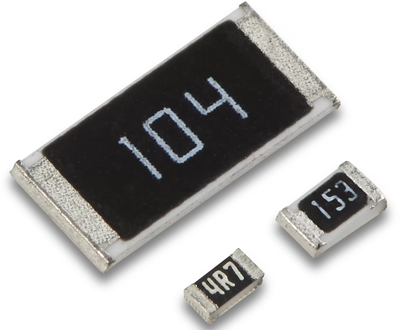

Chip resistor, 3-2176341-7, TE Connectivity
The 3-2176341-7 is a thick film chip resistor, suitable for auto placement in volume and for most applications. Also suitable for both wave and reflow soldering techniques.
Features
- Small size and light weight
- Terminal finish matte Sn over Ni
Technical specifications
| ohmic resistance | 10 kΩ | |
| Design | SMD 2012 | |
| Height | 0.55 mm | |
| Length | 2 mm | |
| Power | 0.125 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | thick film | |
| Temperature coefficient | ±100 ppm/°K |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85332100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
