B57621C5103J062 | TDK (EPCOS)

Name: NTC, 10 kΩ, ±5 %, 0.3 W, 3530 K, 0.005 W/K, 10 s, SMD 1206, B57621C5103J062
Brand: TDK (EPCOS)
SKU: 82E5534
Availability: OutOfStock

NTC, 10 kΩ, ±5 %, 0.3 W, 3530 K, 0.005 W/K, 10 s, SMD 1206, B57621C5103J062

Order No.: 82E5534

EAN: 4099879979889

MPN:

B57621C5103J062

B57621C5103J62

Series: B57621

B57621C5103J062 TDK (EPCOS) NTC Thermistors

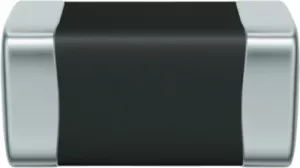

Image may differ

Key Specification:

ohmic resistance 10 kΩ

Tolerance ±5 %

Power 0.3 W

B-value at 25/100 Â°C 3530 K

Thermal conductivity (Air) 0.005 W/K

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.5712 € *

Available: 0 pcs.

Leadtime: On Request **

Total Price:

2,284.80 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

SMD NTC resistor, B57621C5103J062, EPCOS

Features

SMD NTC with/ without inner electrodes
Nickel barrier termination
Excellent long-term aging stability in high temperature environment

Technical specifications

	Assembly	SMD 1206
	Power	0.3 W
	min. operating temperature	-55 °C
	Cooling time constant (air)	10 s
	Tolerance	±5 %
	max. operating temperature	125 °C
	ohmic resistance	10 kΩ
	B-value at 25/100 Â°C	3530 K
	Thermal conductivity (Air)	0.005 W/K
