1019246 | SICK
Reflecting light barrier, NPN or PNP, 10-30 VDC, M12-connector, IP67, 1019246
Unit Price (€ / pc.)
175.0728 € *
Available: 0 pcs.
Leadtime: On Request **

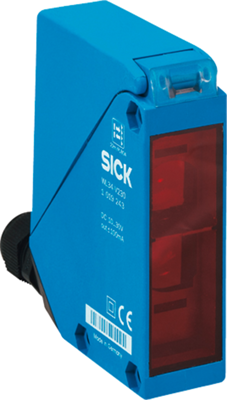

Retroreflective photoelectric sensors, type Sick WL34.
Rugged design, high functional reserve in visible red light. With adjustable timer; Range/Operating range: max. 22 m, depending on the reflector. Light emitter: LED. Light type: red light. Light spot diameter: approx. 250 mm at a distance of 15 m. Housing material: ABS. VDE protection class: II. Degree of protection: IP 67. Ambient temperature (operation): –40 to +60 °C. The reflectors, brackets and connectors are available on separate order.
With PNP or NPN output, type WL34-B440.
Supply voltage: 10 to 30 VDC. Output current: max. 100 mA. Response time: max. 500 µs. Switching rate: max. 1000/s. Connection type: M12 connector, 4-pole.
Type: WL34-B440, retroreflective photoelectric sensor
Technical specifications
| Connection | M12-connector | |
| Activation time | 0.5 ms | |
| Version | reflecting light barrier | |
| Output | NPN or PNP | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 50 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
