20846-425 | SCHROFF

Name: Front Panel, Refrofit Shielding, 3 U, 3 HP
Brand: SCHROFF
SKU: 85H1192
Price: 6.82 EUR
Availability: InStock

Front Panel, Refrofit Shielding, 3 U, 3 HP

Order No.: 85H1192

EAN: 4036088054679

MPN:

20846-425

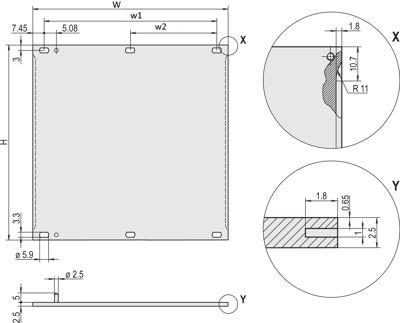

Image may differ

Key Specification:

Version front plate

Material aluminum

Show 28 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

6.8187 € *

Available: 5 pcs.

Leadtime: 1 Week **

Total Price:

34.09 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Flat front panel. Shieldable with stainless steel EMC gasket.

Technical specifications

	Version	front plate
	Width	14.9 mm
	Height	128.4 mm
	Material	aluminum
	cutting pitch differential	3 U/3 HP

Show similar products 0

Download

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	76169990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
