SA 70823 201 062 | Saft

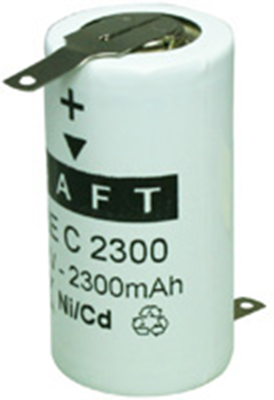

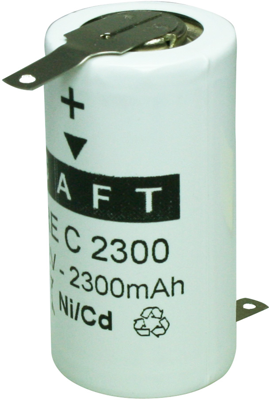

Nickel-cadmium-battery, 1.2 V, 2.3 Ah, KR14, C, soldering lug

Order No.: 26A6727
EAN: 4099891652685
MPN:
SA 70823 201 062
Saft
default L
front L
Image may differ
Print
Key Specification:
Technology nickel-cadmium
other designation baby
Size C
Rated voltage 1.2 V
Nominal capacity 2.3 Ah

Ordering Information:

Use exclusively for emergency and alarm systems, including emergency lighting as well as medical equipment. Not for sale to end-consumers
Show 8 variants
Download Datasheet Technical specifications

Discontinued

Unit Price (€ / pc.)
7.1162 € *
Available: 2 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
7.12 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.1162 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

NiCd accumulators with special contacts, type Saft VR../VRE.

Suitable for use as round cell in heatshrink tubing

With tap type D2, type VR.

Two solder lugs, offset by 180°; same design for minus and plus poles.
Technical specifications
Connection soldering lug
Usage general applications
diameter 25.15 mm
Size C
Height 49.1 mm
IEC designation KR14
max. operating temperature 50 °C
min. operating temperature 0 °C
Nominal capacity 2.3 Ah
Rated voltage 1.2 V
other designation baby
Technology nickel-cadmium
Show similar products 0
Logistics
Country of origin FR
Customs tariff number 85073020
Compliance
RoHS conform not_relevant
Date of RoHS guidelines 3/31/15
SVHC free Yes
