707291-000 | Raychem
TE Connectivity/Raychem 707291-000
Order No.: 34P5713
EAN: 4099889713770
MPN:
707291-000
TXR41AB00-1612BI
Unit Price (€ / pc.)
201.0148 € *
Available: 0 pcs.
Leadtime: 56 Weeks **

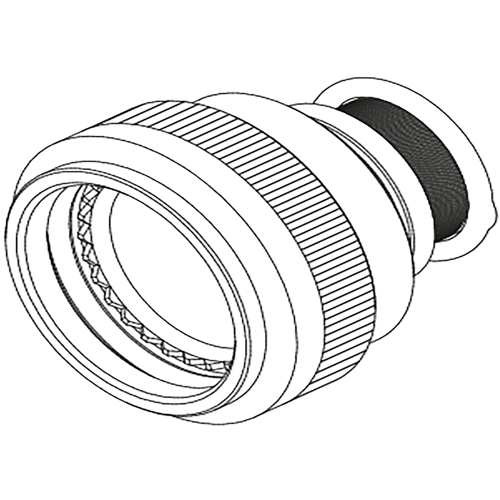

Ruggedized Backshell and Adapter, 707291-000, Raychem
Pluggable I/O Accessory Type: Tinel-Lock Adapter, Adapter Angle: Straight, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 16,17, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 41, Adapter Entry Size: 12, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-19.1 mm, Cable Diameter Range: 9.5-15.2 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Version | adapter | |
| Shell Material | aluminum | |
| Cable diameter | 9.5 to 15.2 mm | |
| Orientation | straight |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Cadmium |
