EC0039-000 | Raychem
PVC cable maker, imprint "8", (L x W x H) 4.75 x 4.5 x 3 mm, max. bundle Ø 2 mm, gray, EC0039-000
Order No.: 37P8583
EAN: 4099891208356
MPN:
EC0039-000
05801808
Unit Price (€ / pc.)
0.0190 € *
Available: 0 pcs.
Available in 5 Days: 18,397 pcs.
Leadtime: 1 Week **
Total Price:
0.02 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.0190 €
10000 pcs.
0.0143 €
*incl. VAT plus shipping costs
**Subject to prior sale

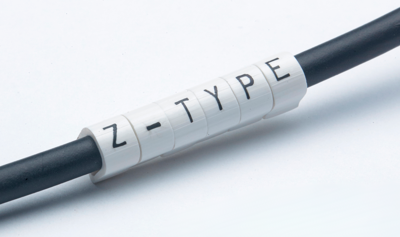

Z-type marker, EC0039-000, RAYCHEM
Z-type marker is an individual push-on marker used to identify wires and small cables permanently. The marker is manufactured using PVC and designed with an expanding profile, enabling each marker to accommodate a wide range of wire/cable sizes. Z-type marker is a simple, cost-effective solution for many commercial wire identification applications. The marker is a grey straight cut variant.
Features
- Self-extinguishing
- Resistant to key Industrial fluids, including those used in mass transit, aviation and military
- Nine sizes covering wire diameters from 1.5 mm to 12.7 mm
Applications
- Pre-termination cable identification
- Applicator wands available for easy marker installation
- Electrical and electronic equipment
Technical specifications
| Imprint | 8 | |
| Version | cable maker | |
| Width | 4.5 mm | |
| Colour | gray | |
| Height | 3 mm | |
| Length | 4.75 mm | |
| Material | PVC | |
| max. Bundle diameter | 2 mm | |
| Markable | No |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
