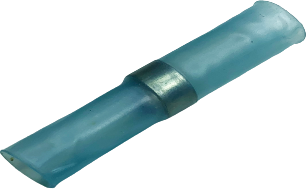

624033-000 | Raychem
Butt connector with heat shrink insulation, 0.34 mm², AWG 22, transparent blue, 17.25 mm
Order No.: 34P3635
EAN: 4099889607079
MPN:
624033-000
D-100-33
Unit Price (€ / pc.)
4.4744 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
SolderSleeve Shield Terminator, 624033 - 000, Raychem
Splice Type: Shield Terminator, SolderSleeve Shield Terminator Product Type: Shield Terminator, Pre - Installed Lead Type: W22759/32, Pre - Installed Lead: Yes, Lead Stranding: Stranded, Termination Method: Solder, Jacket Outside Diameter: 2.7 mm, SolderSleeve Shield Terminator Expanded Inside Diameter (Min): 2.7 mm, SolderSleeve Shield Terminator Recovered Inside Diameter (Max): 0.89 mm, Wire Size: 0.34 mm², Wire Size: 22 AWG, SolderSleeve Shield Terminator Operating Temperature (Max): 150 °C, Wire Temperature (Max): 125 °C, MIL/NAS Specification (MIL - S - 83519, NAS - 1747): No
Technical specifications
| Version | butt connector | |
| AWG cross-section | AWG 22 | |
| Colour | transparent blue | |
| Length | 17.25 mm | |
| Cable cross-section | 0.34 mm² | |
| Material | polyvinylidene fluoride | |
| shrinkable tubing | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
