3206429 | Phoenix Contact

Through terminal block, quick connection, 0.5-2.5 mm², 2 pole, 24 A, 8 kV, blue, 3206429

Order No.: 09H9126
EAN: 4017918976040
MPN:
3206429
QTC 2,5 BU
Series: QTC
Phoenix Contact
default L
Image may differ
Unit Price (€ / pc.)
2.3324 € *
Available: 50 pcs.
Leadtime: On Request **
Total Price:
2.33 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3324 €
10 pcs.
2.0944 €
100 pcs.
1.7731 €
*incl. VAT plus shipping costs
**Subject to prior sale

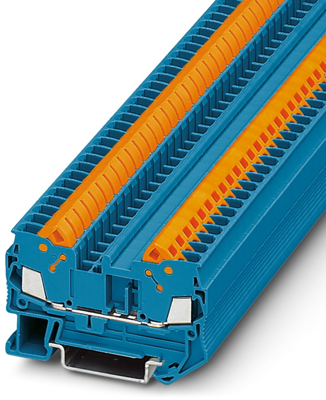

Feed-through terminal block, 3206429, Phoenix Contact

Feed-through terminal block, Nominal voltage: 800 V, Nominal current: 24 A, Connection method: Quick connection, 1 level, Rated cross section: 2.5 mm², Cross section: 0.5 mm² - 2.5 mm², Mounting type: NS 35/7,5, NS 35/15, Color: blue

Features

  • Compact design
  • Tested for railway applications
Technical specifications
Connection quick connection
Number of terminals 2
Version through terminal block
AWG cross-section AWG 20 to 14
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 6.2 mm
Colour blue
Height 39.3 mm
Length 62.6 mm
Cable cross-section 0.5-2.5 mm²
Rated current 24 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Colour
Cable cross-section
Version
Rated Voltage
Width
Length
Pin number
Height
Connection
AWG cross-section
Rated current
Number of terminals
