1411605 | Phoenix Contact

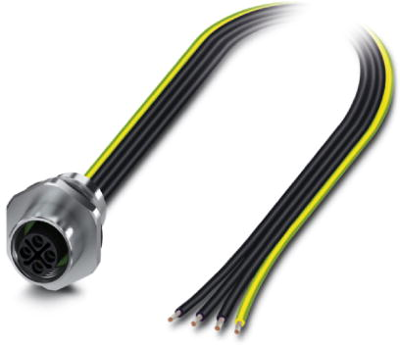

Sensor actuator cable, M12-flange socket, straight to open end, 4 pole, 0.5 m, 12 A, 1411605
Unit Price (€ / pc.)
28.8932 € *
Available: 0 pcs.
Available in 10 days: 7 pcs.
Leadtime: 2 Weeks **
Power connector, 1411605, Phoenix Contact
Flush-type connector, Power, 4-position, Socket, M12, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 1.31 mm², UL/cUL stranded hook-up wire.
Features
- Pre-assembled with litz wires for immediate use
- Mechanical tightening limitation for long-term-stable gasket
- Sealed on the litz wire side for optimum leak-tightness
- M-coded
- Pollution degree: 3
- Overvoltage category: III
- Degree of protection: IP67
Applications
- For transmitting high power
- For high transmission safety
Technical specifications
| Cable length | 0.5 m | |
| LED display | No | |
| max. Voltage | 630 V | |
| Degree of protection (IP) | IP65/IP67 | |
| Rated current | 12 A | |
| Connection (2) | open end | |
| Pin number | 4 pole | |
| Connection (1) | M12-flange socket, straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
