1411581 | Phoenix Contact
Sensor actuator cable, M12-flange plug, straight to open end, 8 pole, 0.5 m, 2 A, 1411581
Unit Price (€ / pc.)
26.061 € *
Available: 0 pcs.
Available in 10 days: 1 pcs.
Leadtime: 2 Weeks **

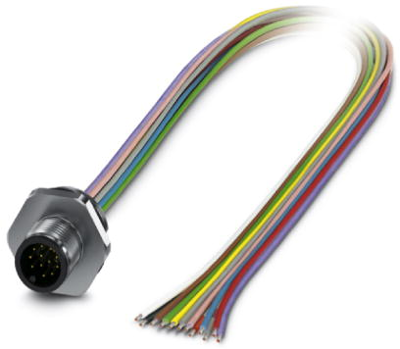

Sensor-actuator connector, 1411581, Phoenix Contact
Flush-type connector, 8-position, Plug, straight, M12, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.25 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Mechanical tightening limitation for long-term-stable gasket
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For transmission of signals
- For data transimission
Technical specifications
| Cable length | 0.5 m | |
| LED display | No | |
| max. Voltage | 30 V | |
| Degree of protection (IP) | IP65/IP67 | |
| Rated current | 2 A | |
| Connection (2) | open end | |
| Pin number | 8 pole | |
| Connection (1) | M12-flange plug, straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
