210537 | PEPPERL+FUCHS
Reflecting light barrier, PNP, 10-30 VDC, M8-connector, IP67, 210537
Order No.: 28G1036
EAN: 4099889430394
MPN:
210537
ML100-8-1000-RT/95/103
Unit Price (€ / pc.)
143.5021 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

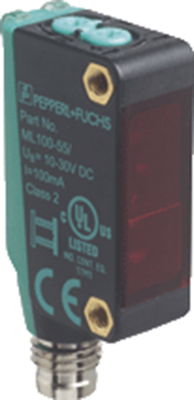

Retroreflective sensor, type Pepperl+Fuchs ML100
type: ML100-8-1000-RT/95/103
energetic, insensitive to extraneous light.
Sensing range: max. 1000 mm
Switching frequency: 1.0 kHz
Operating voltage: 10 to 30 VDC
Signal output: PNP
Connection: 4-pole connector
Degree of protection: IP 67
Housing: PC
Operating temperatures: - 30 to +60 °C
Certifications: cULus
Technical specifications
| Connection | M8-connector | |
| Activation time | 0.5 ms | |
| Version | reflecting light barrier | |
| Output | PNP | |
| Switching logic | dark ON | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 20 mA |
Download
Logistics
| Country of origin | VN |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead, 4,4'-isopropylidenediphenol, Perfluorobutane sulfonic acid (PFBS) and its salts |
