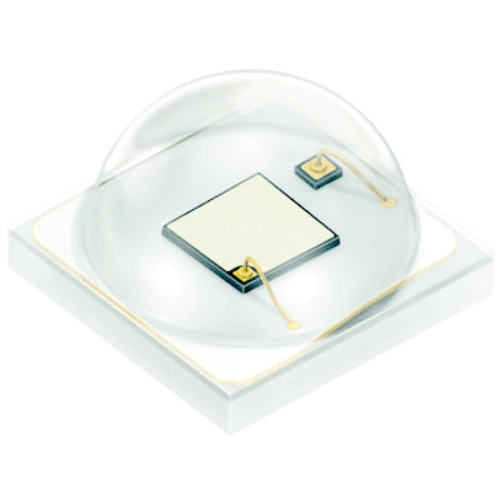

Q65112A9298 | Osram Opto Semi
LED, SMD, 1212, white, 472 nm, 11.9 cd, 110°, Q65112A9298
Order No.: 71S1424
EAN: 4099879011572
MPN:
Q65112A9298
LB CRBP.01-HYKX-7B-Y474-350-R18
Series: LUW CRBP.01
Unit Price (€ / pc.)
1.7017 € *
Available: 377 pcs.
Leadtime: On Request **
Total Price:
5.11 € *
Price list
Quantity
Price per unit*
3 pcs.
1.7017 €
15 pcs.
1.4875 €
100 pcs.
1.3209 €
600 pcs.
1.1900 €
1200 pcs.
1.0829 €
*incl. VAT plus shipping costs
**Subject to prior sale
Signal, Q65112A9298, Osram Opto Semi
The OSLON Signal combines a compact form factor with high efficiency and electrically insulated thermal pad. The square package matches optical center with the mechanical center. This provides easy clustering flexibility and high packing density for a maximum flux density. The color bins are defined for best fit to most signaling norms.
Applications
- Access control and security
- Appliances and tools
- Factory automation
- Home and building automation
- Material processing
- Projection and display
- Transportation
Technical specifications
| Radiation angle | 110 ° | |
| Number of LEDs | 1 | |
| Width | 3 mm | |
| On-State Voltage | 2.9 V | |
| Forward Current | 350 mA | |
| Colour of the LED | white | |
| Enclosure | 1212 | |
| Length | 3 mm | |
| Light intensity typ. | 11.9 cd | |
| Lens | clear | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 472 nm |
Download
Logistics
| Customs tariff number | 85414100 |
| Original Packaging | Reel with 600 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
