2N6109G | onsemi

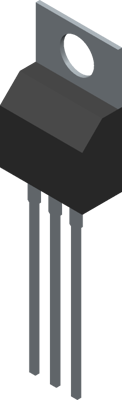

Bipolar junction transistor, PNP, -7 A, -50 V, THT, TO-220, 2N6109G
Images may differ
Discontinued
Unit Price (€ / pc.)
0.6902 € *
Available: 630 pcs.
Leadtime: On Request **
Total Price:
6.90 € *
Quantity
Price per unit*
10 pcs.
0.6902 €
50 pcs.
0.6069 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Transistors series 2N.
Technical attributes (type, package, manufacturer): 2N6109, TO220, ON Semiconductor
Technical specifications
| Version | PNP | |
| Enclosure | TO-220 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | -60 V | |
| max.voltage between collector and emitter Vceo | -50 V | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Saturation voltage | -3.5 V | |
| Transit frequency fTmin | 10 MHz | |
| Power dissipation | 40 W | |
| Collector current | -7 A | |
| Max DC amplification | 150 mA | |
| Min DC gain | 30 mA |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85412900 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
