006-2-064-D-B2STF-XS0 | MPE-GARRY

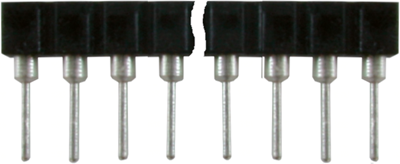

IC contact spring strip, 64 pole, pitch 2.54 mm , brass/copper beryllium for DIL-IC

Order No.: 15B5832
EAN: 4099879023650
MPN:
006-2-064-D-B2STF-XS0
Series: MSD
MPE-GARRY
default L
front L
Image may differ
Unit Price (€ / pc.)
9.4605 € *
Available: 86 pcs.
Leadtime: On Request **
Total Price:
9.46 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4605 €
5 pcs.
8.6037 €
25 pcs.
8.1515 €
75 pcs.
7.7588 €
150 pcs.
7.5089 €
*incl. VAT plus shipping costs
**Subject to prior sale

IC spring socket strips with longer solder pins, type MPE-GARRY MS/MSD.

Insulating body: thermoplastic to UL 94 V-0. Contact material: brass. Sleeve: tinned sleeve. Spring: gold-plated. Rated current: 3.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –40 to +105 °C.

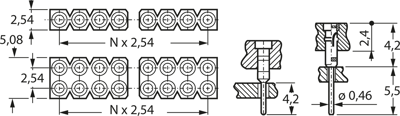

Technical attributes (type, number of poles, solder pin length): 006-2-064-D-B2STF-XS0, 2 x 32-pole, 4.2 mm

Technical specifications
Version IC contact spring strip
Width 5.08 mm
Suitable for DIL-IC
Height 2.4 mm
Contact material brass/copper beryllium
Length 7.37 mm
Material thermoplastic
max. operating temperature 125 °C
min. operating temperature -55 °C
Rated voltage 150 V
Rated current 3 A
Pin number 64 pole
Grid 2.54 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
