15345047 | LAPP

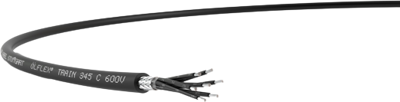

Polymer train cable ÖLFLEX TRAIN 345 C 600V 32 x 0.5 mm², shielded, black
Order No.: 33P2237
EAN: 4044777919444
MPN:
15345047
ÖLFLEX TRAIN 345 C 600V 32x0,5
Series: ÖLFLEX TRAIN 345 C 600V
Unit Price (€ / mtr.)
26.2633 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 15345047, LAPP
The 15345047 is a highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
Applications
- Suitable for connecting lamps
- Heating equipment
- Applicable within oily environments and areas with increased ambient temperature
Technical specifications
| Core insulation material | polymer | |
| Core colour sequence | VDE 0293-1 | |
| Number of cores | 32 | |
| Version | train cable | |
| Outer diameter | 17.8 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.5 mm² | |
| Material | polymer | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Test voltage | 3.5 kV | |
| Shielding | shielded | |
| Protective conductor available | No | |
| Temperature range (active) | -35 °C to 90 °C | |
| Temperature range (unmoved) | -45 °C to 120 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
