70095200 | LAPP
Bulkhead housing, size HB16, aluminum alloy, PG21/PG29, angled, cross bow locking, IP65/IP40, 70095200
Unit Price (€ / pc.)
36.1284 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
36.13 € *
Price list
Quantity
Price per unit*
1 pcs.
36.1284 €
5 pcs.
33.0463 €
10 pcs.
30.9757 €
25 pcs.
28.9170 €
*incl. VAT plus shipping costs
**Subject to prior sale

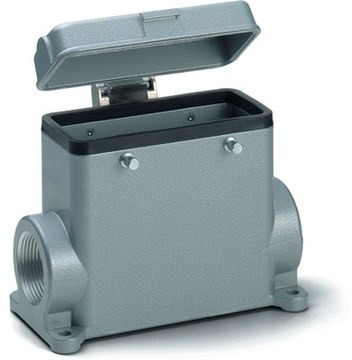

Bulkhead housing, 70095200, LAPP
The 70095200 housing for universal application consists of pivots for the direct lever, a cable entry and a metal cap.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry

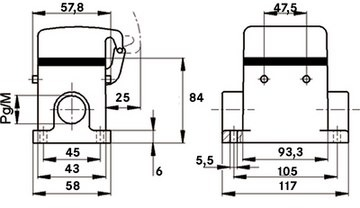

Technical specifications
| Version | bulkhead housing | |
| Shell size | HB16 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | PG21/PG29, angled | |
| Degree of protection (IP) | IP65/IP40 | |
| Type of locking | cross bow locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
