70090200 | LAPP
Grommet housing, size HB16, aluminum alloy, PG21/PG29, straight, cross bow locking, IP65, 70090200
Unit Price (€ / pc.)
29.1907 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
29.19 € *
Price list
Quantity
Price per unit*
1 pcs.
29.1907 €
5 pcs.
26.2752 €
10 pcs.
24.0856 €
50 pcs.
22.6219 €
100 pcs.
21.1582 €
*incl. VAT plus shipping costs
**Subject to prior sale

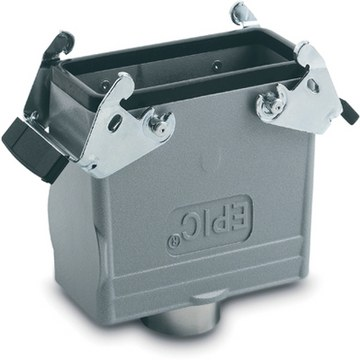

Sleeve housing, 70090200, LAPP
The 70090200 metal housing consists of 2 double levers and a direct cable entry and is not only the ideal solution for application within the plastics industry.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry

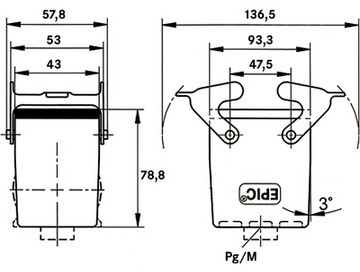

Technical specifications
| Version | grommet housing | |
| Shell size | HB16 | |
| Shell Material | aluminum alloy | |
| Cable Outlet | PG21/PG29, straight | |
| Degree of protection (IP) | IP65 | |
| Type of locking | cross bow locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
