1062944 | LAPP

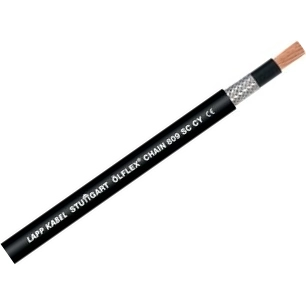

PVC control line ÖLFLEX CHAIN 809 SC 1 x 35 mm², AWG 2, black
Order No.: 33P191
EAN: 4044777044108
MPN:
1062944
ÖLFLEX CHAIN 809 SC CY 1X35
Series: ÖLFLEX CHAIN 809 SC
Unit Price (€ / mtr.)
15.9222 € *
Available: 0 mtr.
Leadtime: On Request **
Single core cable, 1062944, LAPP
This product is high-flexible PVC single-core cable for flexible use and fixed installation under light or medium mechanical load conditions. It is suitable for outdoor use if the indicated temperature range is observed and it is resistant to acids, alkalis and certain oils at room temperature. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.
Features
- Oil-resistant
- Low-adhesive surface
- Torsion-resistant
- Power chain
- UV-resistant
Applications
- In power chains or moving machine parts
- For internal wiring of electric and electronic equipment in switch cabinets
- Specially designed for power circuits of servomotors driven by frequency converters
- Automotive industry, vehicles and stationary fuel cell systems
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 1 | |
| Version | control line | |
| Outer diameter | 14.8 mm | |
| AWG cross-section | AWG 2 | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 35 mm² | |
| Material | PVC | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Rated voltage UL/CSA | 600 V | |
| Standard number | UL | |
| Test voltage | 4 kV | |
| Drag chain suitable | Yes | |
| Protective conductor available | No | |
| Temperature range (active) | -0 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
