1002175 | LAPP

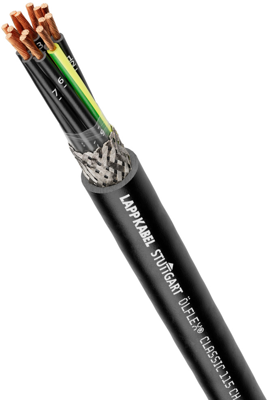

HFFR control line ÖLFLEX CLASSIC 115 CH SF 5 G 1.5 mm², shielded, black
Order No.: 33P1455
EAN: 4056158698459
MPN:
1002175
ÖLFLEX CLASSIC 115 CH SF 5G1,5
Series: ÖLFLEX CLASSIC 115 CH SF
Unit Price (€ / mtr.)
8.0087 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 1002175, LAPP
Features
- Flame-retardant
- No flame-propagation
- Halogen-free
- Low smoke density
- Oil-resistant
- UV and weather-resistant
- Ozone-resistant
Applications
- Railway applications
- Public buildings like airports or railway stations
- Plant engineering, Industrial machinery
- Heating and air-conditioning systems
Technical specifications
| Core insulation material | HFFR | |
| Core colour sequence | VDE 0293-1 | |
| Number of cores | 5 | |
| Version | control line | |
| Outer diameter | 9.1 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² | |
| Material | HFFR | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Temperature range (active) | -30 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
