50B8 | Klauke
Uninsulated tube cable lug, 50 mm², 8.4 mm, M8
Order No.: 07F1303
EAN: 4012078789981
MPN:
50B8
Unit Price (€ / pc.)
3.1178 € *
Available: 0 pcs.
Leadtime: On Request **

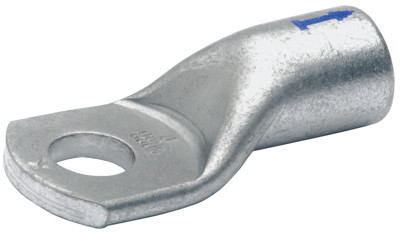

Tubular cable lug, 50B8, Klauke
Tubular cable lug for compacted, multi-stranded round conductors.
Features
- Accurate assignment of crimping tool/crimping die through colour-coding system
- Less crimpings due to max. crimping width
- Reduced costs due to compact dimensions
- Processing without use of additional sleeves
- Annealed material optimises material and crimping properties
- Reliable assignment owed to item designation on the cable lug
- Simple and safe connection due to flat contact surfaces and internal chamfer
Technical specifications
| Version | tube cable lug | |
| Thread size | M8 | |
| Isolated | No | |
| Cable cross-section | 50 mm² | |
| Hole diameter | 8.4 mm | |
| Material | copper, tin-plated | |
| Nominal size according to DIN | DIN 60228 | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
