KA-3528LVSECKT-J4 | Kingbright
LED, SMD, orange, 605 nm, 120 mcd to 0.22 cd, 120°, KA-3528LVSECKT-J4
Unit Price (€ / pc.)
0.3332 € *
Available: 70 pcs.
Leadtime: 9 Weeks **
Total Price:
8.33 € *
Price list
Quantity
Price per unit*
25 pcs.
0.3332 €
125 pcs.
0.2975 €
500 pcs.
0.2678 €
2000 pcs.
0.2440 €
5000 pcs.
0.2237 €
*incl. VAT plus shipping costs
**Subject to prior sale

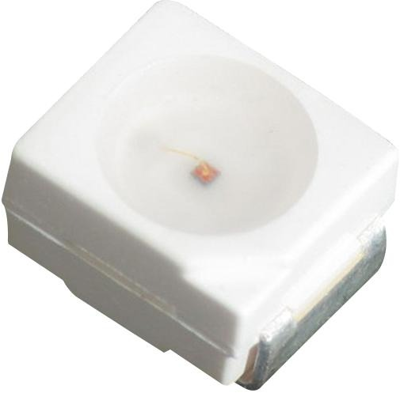

Surface mount LED lamp, KA-3528LVSECKT-J4, Kingbright
The orange source color device is made with AlGaInP light emitting diode..
Features
- Single color
- Suitable for all SMT assembly and solder process
- Ideal for backlighting
- Low current IF=2mA operating
- RoHS compliant
Technical specifications
Radiation angle | 120 ° | |
Number of LEDs | 1 | |
Width | 2.8 mm | |
On-State Voltage | 1.8 V | |
Forward Current | 2 mA | |
Colour of the LED | orange | |
Length | 3.2 mm | |
Light intensity min. | 0.12 cd | |
Light intensity typ. | 0.22 cd | |
Lens | clear | |
max. operating temperature | 85 °C | |
min. operating temperature | -40 °C | |
Assembly | SMD | |
Wavelength | 605 nm |
Download
Logistics
Country of origin | CN |
Customs tariff number | 85414100 |
MSL | MSL 3 |
Original Packaging | Reel with 2,000 pieces |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
