PS3V-100AF24P | IDEC
AC/DC converter, 100-240 VAC, 100 W, 1 output, 24 VDC
Order No.: 32C3025
EAN: 4099891767129
MPN:
PS3V-100AF24P
Unit Price (€ / pc.)
55.0375 € *
Available: 0 pcs.
Leadtime: 14 Weeks **

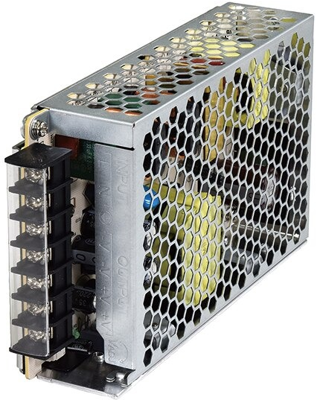

AC/DC converter, PS3V-100AF24P, IDEC
The PS3V-100AF24P is a compact and efficient switching power supply suitable for downsizing of equipmet. Operates in a wide temperature range from -25 to +70°C. Suitable for use in a wide temperature range from cold to hot environmet.
Applications
- Warehouse storage
- Control panels in facilities such as building
- Safety equipment at station platforms
- Control panels at plant factories
- Semiconductor manufacturing equipment
- Mold injection machines
- Logistics and transport facilities
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 24 VDC | |
| Output current | 4.5 A | |
| Design | chassis mounting | |
| Width | 39 mm | |
| Input voltage AC | 100-240 VAC | |
| Height | 93 mm | |
| Length | 108 mm | |
| Power | 100 W | |
| efficiency | 88 % |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
