914CE1-9 | Honeywell
Switch, 1 pole, 1 Form C (NO/NC), pin plunger, stranded wires, IP66, 914CE1-9
Unit Price (€ / pc.)
221.2329 € *
Available: 0 pcs.
Available in 5 Days: 1 pcs.
Leadtime: 1 Week **

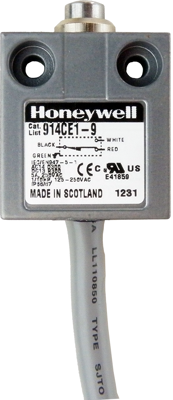

Limit switch, 914CE1-9, Honeywell
All MICRO SWITCH 914CE Series miniature precision switches incorporate fluorocarbon diaphragm sealing to provide reliable protection, meeting NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13, as well as IP66, IP67, and IP68 requirements. Versions with a boot seal also meet NEMA 12 requirements (dust, falling dirt, liquid media with solid contaminates). The cable or connector and basic switch terminals are encapsulated in an epoxy sealant, offering excellent resistance in harsh environments. For low temperature applications (down to -40 °C, -40 °F), CE Series switches can be supplied with low temperature seals and lubricant.
Features
- Rugged, miniature construction means minimal real estate on equipment
- Pre-leaded (UL cable) or supplied with a M12 four-pin connector
- Wide selection of actuators and cable length variations with side and bottom exit cable/connector options
- Gang mounting capability to provide a multi-plunger limit switch
- Low temperature variants available for indoor and outdoor applications
Technical specifications
| Connection | stranded wires | |
| Actuator | pin plunger | |
| Pin number | 1 pole | |
| Latching switching function | 1 Form C (NO/NC) | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
