MVL S WS 50/1 AU VI | Hirschmann Test & Measurement

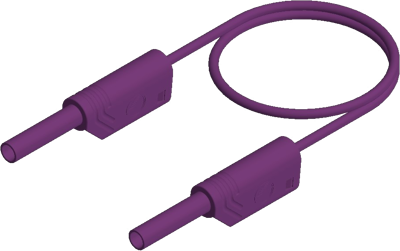

Measuring lead with (2 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 500 mm, purple, PVC, 1.0 mm², CAT III

Order No.: 86F9629
EAN: 4099891947521
MPN:
MVL S WS 50/1 AU VI
975 695-709
Series: MVL S WS
Hirschmann Test & Measurement
default L
Image may differ
Unit Price (€ / pc.)
8.1753 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
8.18 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1753 €
25 pcs.
7.5089 €
50 pcs.
7.0686 €
100 pcs.
6.6283 €
250 pcs.
6.1880 €
*incl. VAT plus shipping costs
**Subject to prior sale

Measuring lead, MVL S WS 50/1 AU VI, Hirschmann Test & Measurement

Safety measuring lead, at either end 2 mm diameter safety connector / safety socket with onward connection capability. Gold-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. In accordance to IEC 61010 Standard. Built in indicator for easy identification of insulation damages.

Technical specifications
Connection (1) 2 mm plug, spring-loaded, straight
Connection (2) 2 mm plug, spring-loaded, straight
Rated Voltage 1000 V
Rated current 10 A
Touch safe Yes
Colour purple
Cable length 500 mm
contact surface gold-plated
Cable cross-section 1.0 mm²
Material PVC
Rated category CAT III
Stackable Yes
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item in 36 variations
*incl. VAT plus shipping costs
