BUELA 30 K AU SW | Hirschmann Test & Measurement

4 mm plug, solder connection, 2.5 mm², CAT O, black, BUELA 30 K AU SW

Order No.: 22F7356
EAN: 4099891917302
MPN:
BUELA 30 K AU SW
930 727-700
Series: BUELA 30 K Au
Hirschmann Test & Measurement
BUELA 30 K AU SW Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.5232 € *
Available: 34 pcs.
Leadtime: On Request **
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5232 €
10 pcs.
1.4042 €
50 pcs.
1.3209 €
100 pcs.
1.2376 €
500 pcs.
1.1517 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug, BUELA 30 K AU SW, Hirschmann Test & Measurement

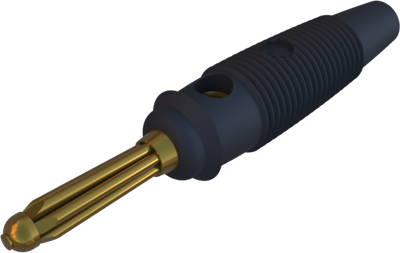

Multiple-spring wire plug, shatter-proof, flexible insulated sleeve with transverse hole. The tapering sleeve end also serves as kinking protection for the lead. Solder connection up to maximum cable cross-section of 2.5 mm². Gold-plated brass contact material.

Technical specifications
Connection solder connection
Version plug
Rated Voltage 30 VAC/60 VDC
Rated current 30 A
Touch safe No
diameter 4 mm
Colour black
contact surface gold-plated
Length 60 mm
Cable cross-section 2.5 mm²
Rated category CAT O
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Carton with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
