19136 | HELUKABEL
PUR control line SUPER-PAAR-TRONIC-C-PUR 28 x 0.75 mm², AWG 19, shielded, gray
Unit Price (€ / mtr.)
34.0459 € *
Available: 0 mtr.
Leadtime: On Request **

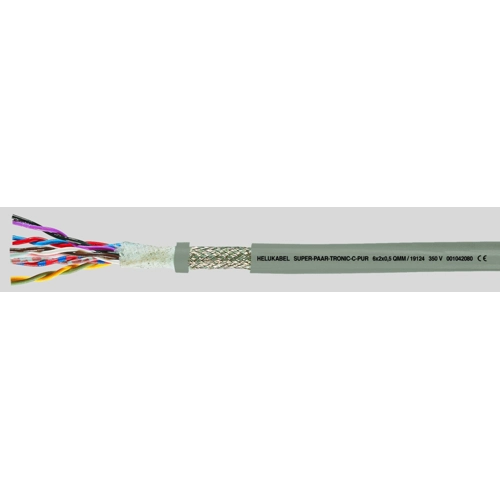

PUR Control cable, 19136, HELUKABEL
These pair stranded and overall screened special cables for drag chains offer the operational possibilities where the outer electrical influences at high frequence cause interference of impulse transmission, are applied for permanent flexible operations in machineries, machine tools, robot technics, for movable automated machinery parts and multi-shift-operation as a transmission-cable.
FEATURES
- UV-resistant
- Oil-resistant
- Ozone-resistant
- High tensile strength
Technical Data
- Cable material: Copper, bright
- Core insulation material: PP
- Color: gray
- Conductor category: Cl.6 = finest-stranded
Technical specifications
| Core insulation material | PP | |
| Number of cores | 28 | |
| Version | control line | |
| Outer diameter | 18.2 mm | |
| AWG cross-section | AWG 19 | |
| Colour | gray | |
| Halogen free | Yes | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.75 mm² | |
| Material | PUR | |
| Rated voltage | 350 V | |
| Test voltage | 1.5 kV | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Protective conductor available | No | |
| Temperature range (active) | -30 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 70 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
