16099 | HELUKABEL
PVC control line F-CY-OZ (LiY-CY) 3 x 2.5 mm², AWG 14, shielded, gray
Unit Price (€ / mtr.)
3.1892 € *
Available: 0 mtr.
Leadtime: On Request **

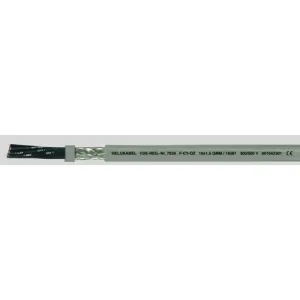

PVC Control cable, 16099, HELUKABEL
For flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not in open air, as cable in the control and regulation technology, tool and machinery, in computer systems, as well as signal line in the electronic. A stabilizing foil separator between wire bound and braid reduces the outer diameter essentially and allows smaller bending radius, lower weight etc.
FEATURES
- Good chemical resistance
- Oil-resistant
- Flame-retardant
- Cadmium-free
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: gray
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | black | |
| Number of cores | 3 | |
| Version | control line | |
| Outer diameter | 9.2 mm | |
| AWG cross-section | AWG 14 | |
| Colour | gray | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 2.5 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Standard number | VDE | |
| Test voltage | 4 kV | |
| Shielding | shielded | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Temperature range (active) | -10 °C to 80 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
