1 0242 202 029 | Flexa
Corrugated hose, inside Ø 29 mm, outside Ø 34.5 mm, BR 50 mm, polyamide, black
Unit Price (€ / mtr.)
15.8984 € *
Available: 0 mtr.
Leadtime: 2 Weeks **

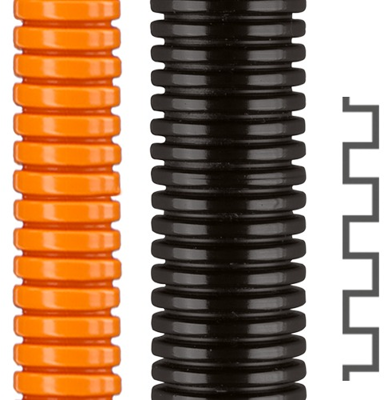

Corrugated tubing, 1 0242 202 029, FLEXA
Protective all-plastic tubing that is internally and externally corrugated with a fine profile, very flexible applications and outdoor areas.
Features
- High alternate bending strength
- Air and liquid-tight
- Oil and benzine resistant
- Widely resistant to acids and solvents
- Free of silicone, cadmium, halogen
- Self-extinguishing
- Flame retardant
- UV-resistant
Technical specifications
| Outer diameter | 34.5 mm | |
| Bending radius | 50 mm | |
| Colour | black | |
| Flame-retardant | Yes | |
| Inner diameter | 29 mm | |
| Material | polyamide | |
| max. operating temperature | 130 °C | |
| min. operating temperature | -50 °C | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
