1 4050 701 055 | Flexa

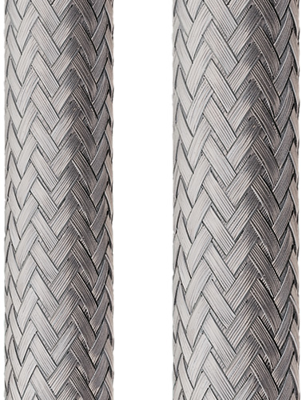

Metal braided sleeve, range 25-45 mm, silver, -50 to 250 °C
Unit Price (€ / mtr.)
30.7853 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Braided sleeve, 1 4050 701 055, Flexa
Wire braiding consisting of fine, round braided wires with double crossed looping at the different braiding angles.
Features
- Easy pulling in of cables
- The braiding becomes tight by stretching
- Protection from hot swarfs
- High shielding factor
Applications
- Cable bundling
- Machine and plant constructions
- Automotive
- Railway industry
- Shipbuilding
- Automation
- Electrical installations
- EMC applications
Technical specifications
| Version | metal braided sleeve | |
| Application range | 25-45 mm | |
| Colour | silver | |
| Halogen free | No | |
| Material | copper, tin-plated | |
| max. operating temperature | 250 °C | |
| min. operating temperature | -50 °C | |
| Optical Coverage | 85 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 83079000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
