10037149 | Fischer Elektronik
Clip-on heatsink, 21 x 13 x 16 mm, 21.2 K/W, solderable surface, 10037149
Unit Price (€ / pc.)
0.8687 € *
Available: 0 pcs.
Leadtime: On Request **

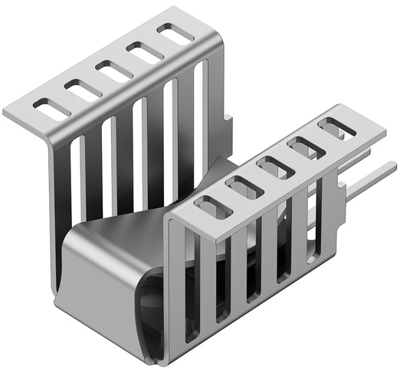

Heat sink, FK 269 MI 220 O, Fischer Elektronik
Heatsink pluggable
Features
- Universal clip-on heatsinks for design TO 220 and similar
- Integrated clamp geometry for a secure fixing of the device
- Angled designs with enlarged surface
- Modifications and special designs according to customer’s specifications
Technical data
- Version: Clip-on Heat sink
- Material: Cu
- Length: 25 mm
- Suitable for: TO220|TO248|TO247|TO218|SIP Multiwatt

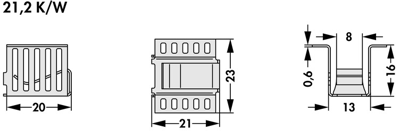

Technical specifications
| Version | clip-on heatsink | |
| Width | 13 mm | |
| Suitable for | TO220, TO248, TO247, TO218, SIP Multiwatt | |
| Height | 16 mm | |
| Length | 21 mm | |
| Material | copper | |
| Max. heat resistance | 21.2 K/W | |
| Surface type | solderable surface |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 74152900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
