4C.52.8.024.0060 | Finder
Coupling relay 2 Form C (NO/NC), 24 V (DC), 8 A, 250 V (AC), 4C.52.8.024.0060
Unit Price (€ / pc.)
20.9916 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

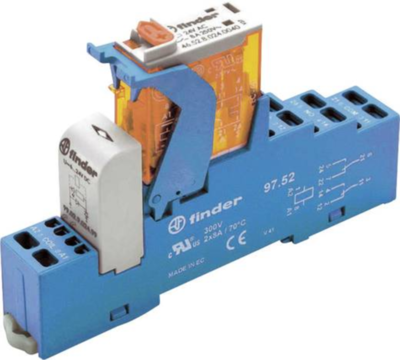

Coupling relay, 4C.52.8.024.0060, Finder
Coupling relay for DIN rail with tension spring terminals, 2 changeover contacts 8 A / 250 V AC coil voltage 24 V AC. Contact material AgNi, with integrated LED and EMC suppression.
Features
- AC coils or DC coils
- Supply status indication and coil suppression module as standard
- Identification label
- UL Listing (certain relay/socket combinations)
- 35 mm rail (EN 60715) mounting
Technical specifications
| Connection | spring-clamp connection | |
| Version | coupling relay | |
| Contact type | 2 Form C (NO/NC) | |
| Contact material | AgNi | |
| Rated voltage (AC) | 250 V | |
| Rated current | 8 A | |
| Degree of protection (IP) | IP20 | |
| Coil voltage (DC) | 24 V | |
| Status display | LED |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
